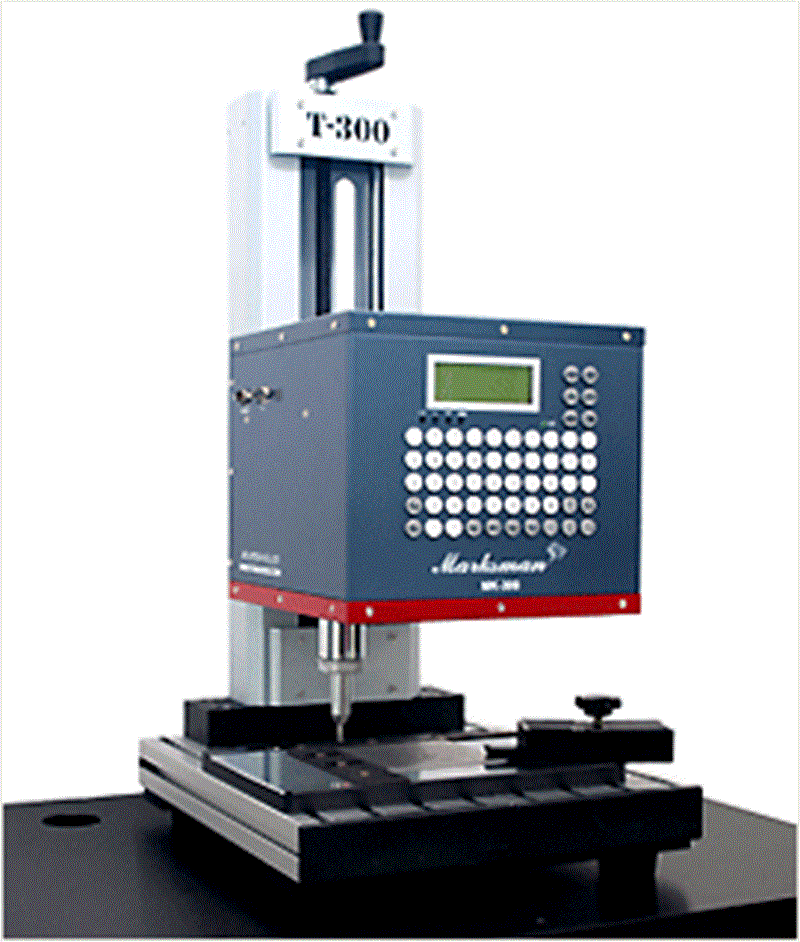

Stand alone Dot peen marking machine MK-300N

Stand alone Dot peen marking machine MK-300N

Mã SP : SKU00043

Stand alone Dot peen marking machine “MK-300N” are designed for small quantity and various kinds of marking.
The “MK-300N” has built in controller inside of marking head as stand alone marking machine.
You can edit marking data with inbuilt keyboard or send it wirelessly to the marking head in seconds via Bluetooth and verify your variable data and setting on the built-in LCD.
It makes you have permanent marking on your parts without P.C.
These type of marking (text, digits) are made of a succession of dots.
MK-300N works with parts of various shapes and surface conditions (flat and irregular surfaces, concave, convex, circular, raw material etc...)



0903 446 042 Gọi điện xác nhận và giao hàng tận nơi

Features
  • Possible to work without PC or with a PC through a RS-232 cable using JS-2100S/W
  • Linear, circular, oblique-line and angle marking, 2D data marking, QR code marking
  • Automatic serialization, date coding, Julian calendar special date coding, day & night coding
  • Embedded 2 kinds of standard fonts and Dot fonts
  • Can mark all kind of window font on JS-2100 S/W
  • Single block data, Auto CAD PLT file marking, special logo marking with JS-2100
    Include : External Switch, Power cable, 86 Keyboard, Air-regulator,
  • Possible to be produced as electric or pneumatic model per customer request.



Marking area:

100mm X 80mm

Dimensions with table

23.5cm(w) X 23.5cm(L) X 20.5cm(H)

Weight

12 Kg

Material of case

Steel

Move guide

Iron Guide -Dust Cover Type

Electric

Select 85~ 230V, 50/60 Hz

Able to save block data

40cha/99 Blocks

Component

- External switch port
- RS-232 port
- Power cable
