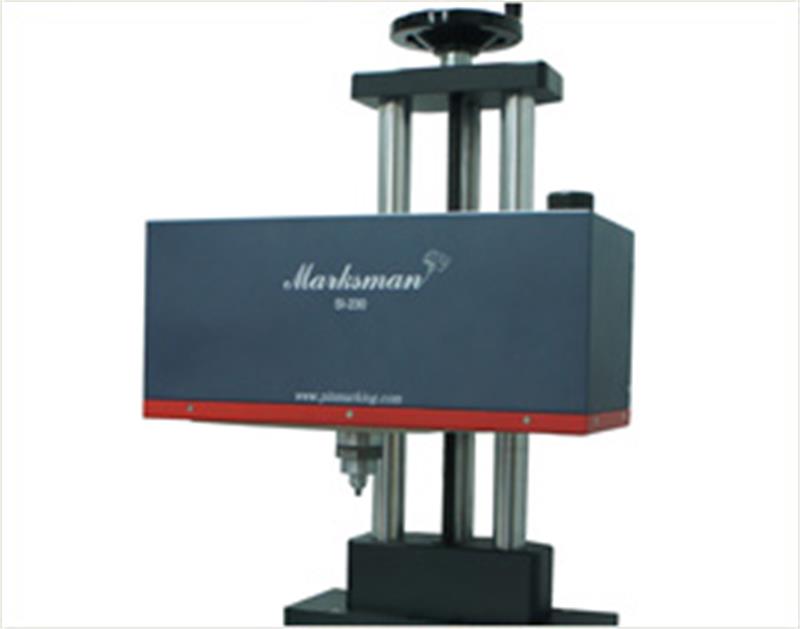

Scribing type Marking Machine Head SI-230

Product code : SKU00038

Jeil Mtech (Markmans) Scribing head, SI-230, is Ball Screw Head which is able to scribing marking (Through SI-03 pin). This Marking head is suitable for the marking which need noiseless marking. Possible to mark for precise marking like 1mm character marking. SI-230 is easier to install to customer application.(Chassis marking) The Ball Screw made by iron and X, Y-axis has a LM Guide inside of the marking head for smooth and long lifetime of moving.

0903 446 042 Get a quote

Features

A Competitive price with good quality
A Dust Cover; protect dust from bad environmental
Able to be quiet marking (Only SI-03 pin)
A variable and easy installing to customer(s) own systems
Able to use SI-03 pin and PH pins
A customer OEM installation or with T-300 table

Marking area	230 X 50 mm
Dimensions with connectors	37cm(w) X 15.8cm(L) X 17.5cm(H)
Weight	14 KG
Material of case	Steel
Move guide	Ball Screw and LM Guide
Motor	STEPPING MOTOR
Control Unit	All available controllers
Dust cover	24 pins for connect cable
