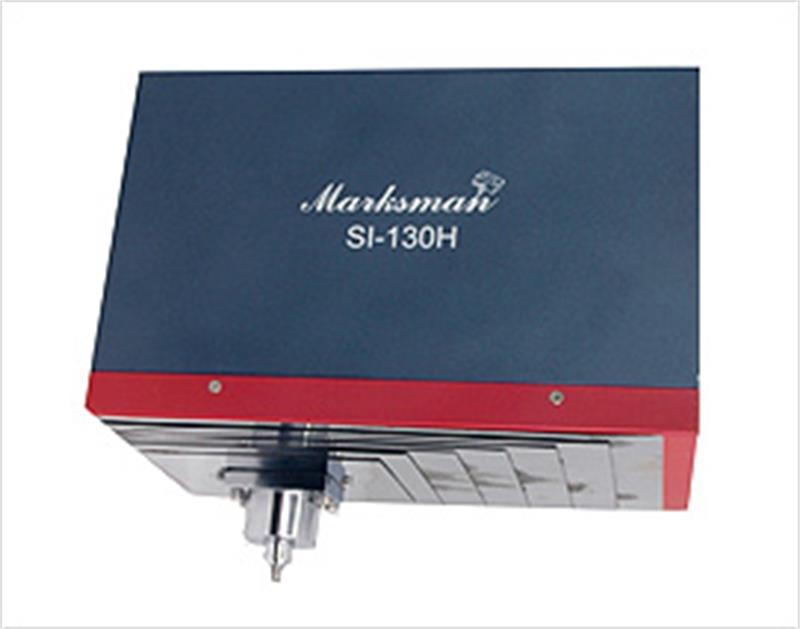

Scribing type Marking Machine Head SI-130H

Product code : SKU00037

The Scribing head, SI-130H, is Ball Screw Head which is able to scribing marking (Through SI-03 pin). This Marking head is suitable for the marking which need noiseless marking.

Possible to mark for precise marking like 1mm character marking.
SI-130H is easier to install to customer application.(Chassis marking) The Ball Screw made by iron and X, Y-axis has a LM Guide inside of the marking head for smooth and long lifetime of moving.

0903 446 042 Get a quote

Features

A Competitive price with good quality
A Dust Cover; protect from the dust and foreign material at bad environment
Possible to do silent marking (Only SI-03 pin)
A variable and easy installing to customer(s) own systems
Able to use SI-03 pin and PH pins
A customer OEM installation or with T-300H table (Recommend)

Marking area	130 X 40 mm
Dimensions with connectors	273mm(w) X 160mm(L) X 180mm(H)
Weight	11 KG
Material of case	Steel
Move guide	Ball Screw and LM Guide
Motor	STEPPING MOTOR
Control Unit	All available controllers
Dust cover	24 pins for connect cable
