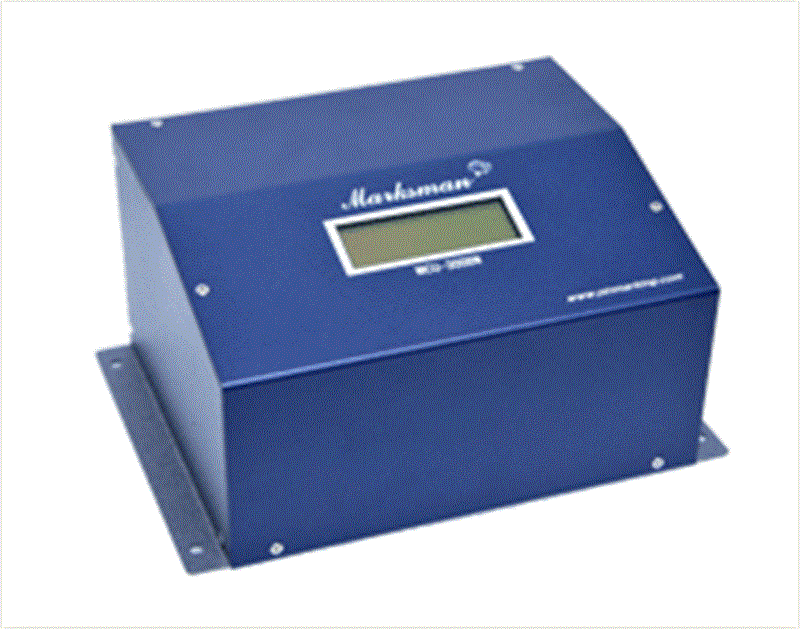

MCU-300BN controller

Product code : SKU00041

MCU-300BN is the most economical compact size controller among Marksman products.
LCD on the controller makes you input and modify the marking data easily by keyboard. While the MCU-300BN can be integrated with our new PC software named JS-2100 on the computer via RS-232 cable.
It also has an external “Stop, Start and Reset” switch for customer convenience.
MCU-300BN is able to support any language and all window font when MCU-300BN is connected with JS-2100.

0903 446 042 Get a quote

Features

Super Fast! Up to 5 letters per second (2mm height)
Linear, circular, angular
Automatic serialization, date coding, Julian calendar special date coding, day & night coding, Shift code.
Embedded 4 kind of standard fonts (Std1, Std2, Dot, User font)
Single block & Multi blocks data, Auto CAD PLT file marking, and special logo marking
2D Data-matrix marking
Able to communicate with external device through RS-232 & I/O interface

Dimensions with connectors	257mm(w)X177mm(L)X130mm(H)
Electric	FreeVoltage (85V~264V,50/60 Hz)
Weight	1.7 KG
Material of case	Steel
Component	- External switch - RS-232 serial port - I/O Interface - 128 Graphic LCD Display - Marking Speed (in case of PH system) - 2mm height = 5 ~ 6 cha. Per a Second - 3mm height = 3 ~ 4 cha. Per a Second
