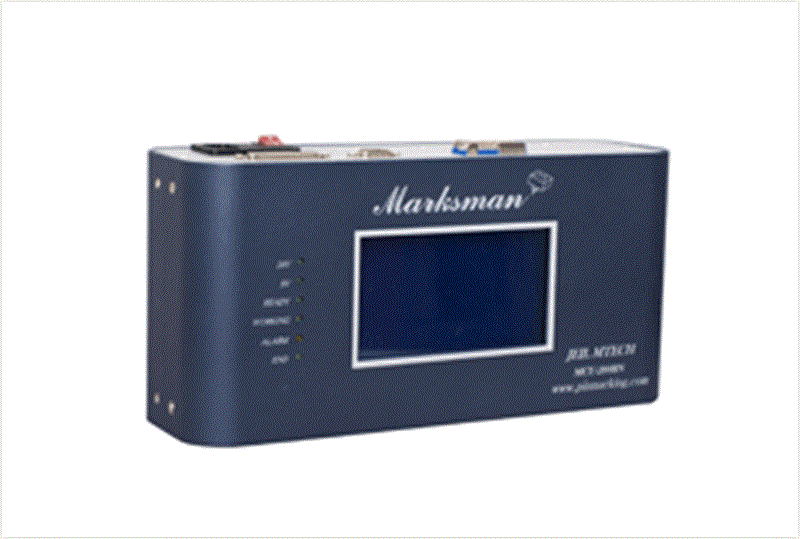

MCU-200BN controller

Product code : SKU00040

Function of MCU-200BN is exactly same as MCU-100N controller and is the newest compact size controller of which size is smaller than MCU-100N with a larger viewing window.
MCU-200BN is the latest products which is able to be communicated with Integration system via I/O, RS-232 and Ethernet.
The compact size of MCU-200BN help you to install the controller to narrow space in the equipment.

0903 446 042 Get a quote

Features

Most important function can be operate without PC or with PC through RS-232 cable using JS-1000 S/W
No Air Cooling system inside of the MCU
Linear, circular, oblique-line, angle and Cylinder marking, Hexagon marking (with CDC-20)
Automatic serialzation, Date coding, Julian calendar, Special date coding, week code, Shift code, day & night coding.
Standard embedded fonts (STD1, STD2, STD3, DOT)
Single block & Multi blocks data, Auto CAD PLT file marking and special logo marking
2D Data matrix marking
SD card and USB for more convenience to Backup and restore data
Able to communicate with on the integration system by I/O interface , RS-232 and Ethernet.

Dimensions with connectors	290mm(W) X 140mm(L) X 90mm(H)
Electric	FreeVoltage (85V~264V,50/60 Hz)
Weight	3.5 KG
Case Material	Steel
Memory	40cha. 999 blocks. 512M byte, SD memory and USB
CPU	Atmel AT
Marking Speed (in case of PH system)	2mm 4~5 per a second 3mm 3~4 /second 6mm 1~2 / second 10mm = 0.6~0.8 /second
components	External switch, RS-232 , PLC I/O Interface and Ethernet port, Radiant of heats, 128 Graphic LCD Display.
