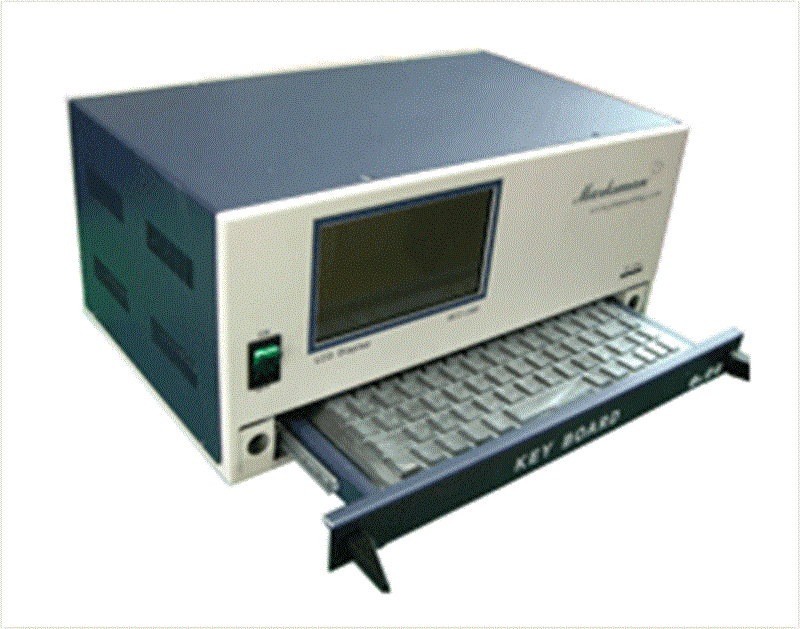

MCU-100N controller provide various functions which is able to be communicated with Integration system via I/O, RS-232 and Ethernet. Front LCD display of which size is 240mm X 128mm to the surface of controller is for user`s friendly. It makes you edit and enter the data easily. Sliding type Keyboard drawer is protected the keyboard from external dust and avoid worker`s mistake on automation line. The function of USB and SD card help you back-up and restore the data easily. The most important functions of MCU-100N are Easy to maintenance by Slotted design of main card
Dimensions with connectors
400mm(W) X 250mm(L) X 190mm(H)
Electric
Free Voltage (85V ~ 264V , 50/60 Hz)
Weight
8 Kg
Case Material
Steel
Memory
40cha. 999 blocks. 512M byte, SD memory and USB
CPU
Atmel AT
Marking Speed (in case of PH system)
2mm 4~5 per a second 3mm 3~4 /second 6mm 1~2 / second 10mm = 0.6~0.8 /second
components
External switch,RS-232 , PLC I/O Interface, Ethernet, heat sink, 240 by 128 Graphic LCD Display, Keyboard inside.
