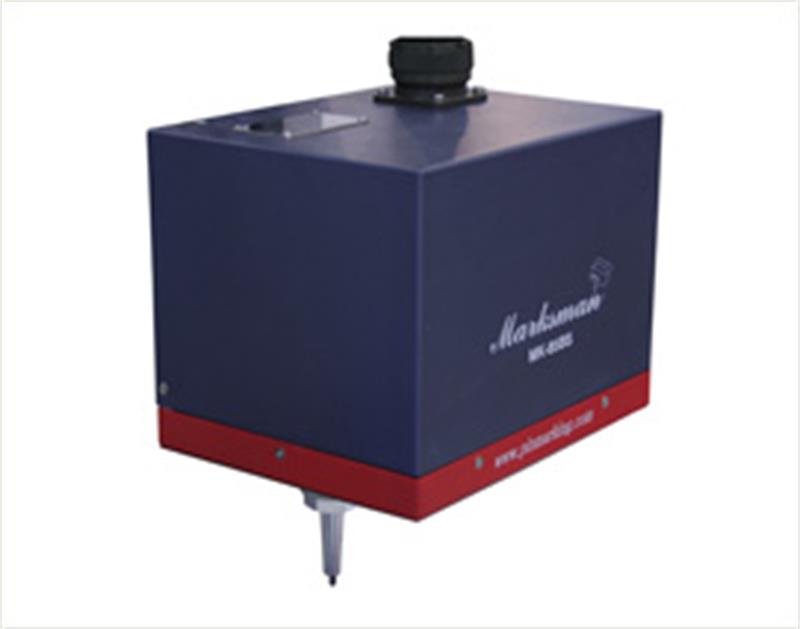

Dot peen marking head MK-85BS

Product code : SKU00027

Jeil Mtech (Markmans) MK-85BS is Ball Screw Heads which are able to mark with very high precision (1mm character height). The case is constructed of Steel which makes it light and easy to install. The Ball Screw is constructed of iron, and the X-Y-axis has a LM Guide inside of the marking head for smooth movement and long service life

0903 446 042 Get a quote

Features

A Competitive price with good quality
A Stainless Dust Cover; protect dust and oil from bad environmental
A variable and easy installing to customer(s) own systems
Able to use springless pin and LP & PH pins
A customer OEM installation or with T-300 table

Dimensions with connectors	203 mm (W) X 158 mm (L) X 193 mm (H)
Marking area	80 mm (X) X 50 mm (Y)
Connector	24 pins for connect cable
Control Unit	All available controllers
Weight	5.6kg
Move guide	Ball Screw, Linear Guide
Motor	Stepping motor
Material of case	Steel
