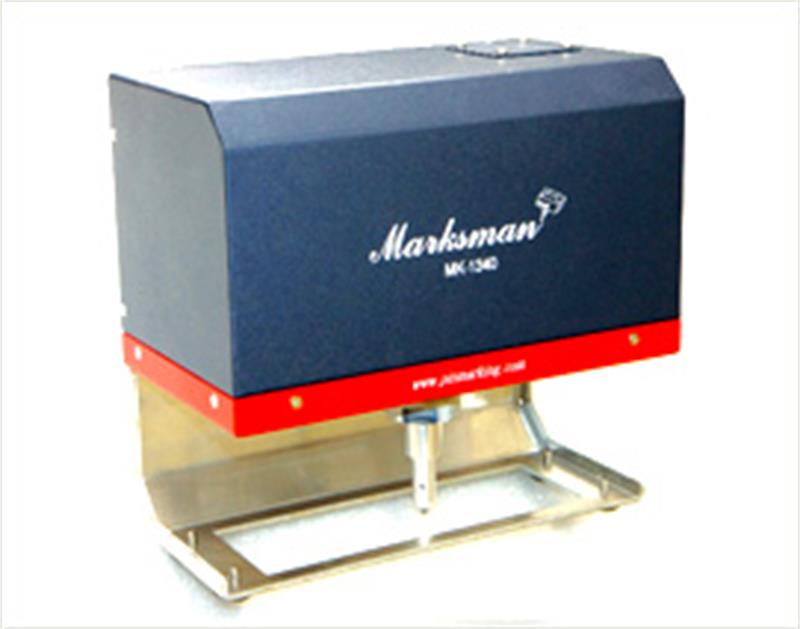

Dot peen marking head MK-1340

Product code : SKU00030

Jeil Mtech (Markmans) MK-1340 is bench top or Portable dot peen marking head(hand held dot pin marker) which are permanently connected to the any of controller by a robotic cable. Portable unit which is ideal for marking huge, large, bulky parts. It can be used for all types of materials ranging from plastic to steel. It marks on linear, angler and cylindrical surfaces and 2D Data Matrix marking . And, customer can choose pneumatic or electronic depending on their purpose



Features

  • A light Weight about 4Kg
  • A Good grip feel with one hand
  • Able to make an OEM ZIG for customer application
  • Able to use LP pins
  • Able to push start on hands



Marking area

120 X 38 mm

Dimensions with connectors

218mm(W) X 120mm(L) X 144mm(H)
218mm(W) X 120mm(L) X 209mm(H) (Jig)

Weight

3.5Kg

Material of case

Steel

Move guide

Linear, LM Guide

Air pressure

Min 2 Bar to Max 5 Bar

Motor

STEPPING MOTOR

Control Unit

All available MCU

Component

Inside Start Switch in handle of Head, 24 cable pins, X timing belt
