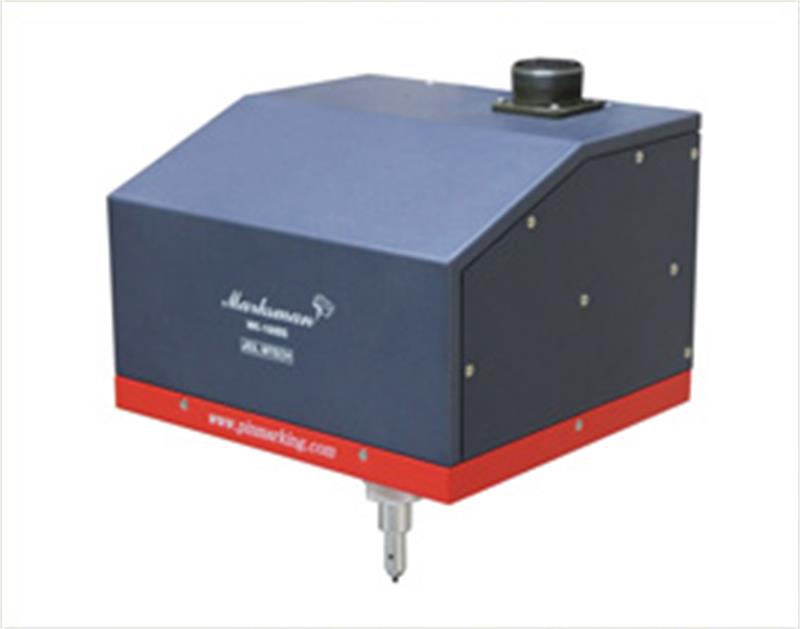

Dot peen marking head MK-100BS

Product code : SKU00028

Jeil Mtech (Markmans) MK-100BS is a Ball Screw Head which is able to precise marking.
Possible to mark precise marking like 1mm character marking and stability and the quality for the character of MH-100BS head is much better than previous marking head. The case of MH-100BS head made by Steel and Guideline Therefore, it’s lighter and easier to install to customer application. The Ball Screw made by iron and X, Y-axis has a LM Guide inside of the marking head for smooth and long lifetime of moving

0903 446 042 Get a quote

Features

A Competitive price with good quality
A Dust Cover; protect dust from bad environmental
Able to be quiet marking (Only SI-03 pin)
A variable and easy installing to customer(s) own systems
Able to use SI-03 pin and PH pins
A customer OEM installation or with T-300 table

Marking area	98 X 100 mm
Dimensions with connectors	23.2cm(width) X 20.6cm(Length) X 16.9cm(Height)
Weight	8 KG
Material of case	steel
Move guide	Ball Screw
Motor	STEPPING MOTOR
Control Unit	All available controllers
Dust cover	24 pins for connect cable
