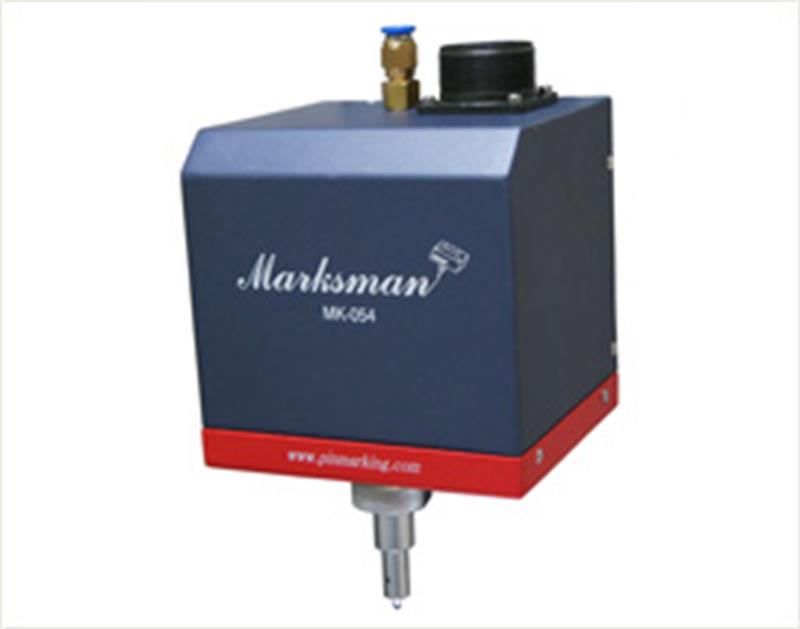

Dot peen marking head MK-054

Product code : SKU00029

Jeil Mtech (Markmans) MK-054 is compact size bench top or Portable dot peen marking head(hand held dot pin marker) which are permanently connected to the any of controller by a robotic cable. Portable unit which is ideal for marking huge, large, bulky parts. It can be used for all types of materials ranging from plastic to steel. It marks on linear, angler and cylindrical surfaces and 2D Data Matrix marking . And, customer can choose pneumatic or electronic depending on their purpose.



Features

  • Can be connected easily because it uses 24pin connector.
  • Easy to install a narrow space.
  • Light weight marking head.
  • Can be used as portable marking head or stand alone marking head.



Dimensions with connectors

133 mm (W) X 120 mm (L) X 144 mm (H)
133 mm (W) X 120 mm (L) X 209 mm (H) (Jig)

Marking area

48 mm (X) X 40 mm (Y)

Connector

24pin connector

App. Air pressure

2 ~ 3 Bar

Weight

2.8 KG

Move guide

Linear, LM Guide

Motor

Stepping motor

Material of case

Steel
