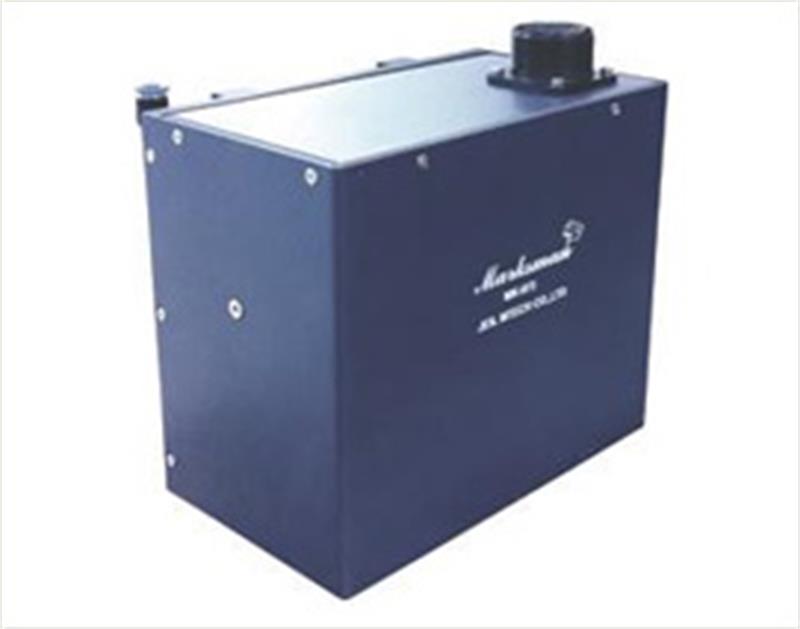

Dot peen marking head MH-073

Product code : SKU00034

Jeil Mtech (Markmans) Compact marking head “MH-073” is made by cast aluminium for protection from outside impact and easy to install a narrow space.
This marking head be installed to the narrow space like U joint assembling machine , welding testing machine, muffler leak testing machine.

0903 446 042 Get a quote

Features

Sound Proof Cap for reduced noise (Only PH-Pin)
Easy integration to customers own systems
Able to use LP and PH pins
MK-100N CPU with SD Storage
Custom OEM installation or with T-300 table .

Marking area	100X85 mm
Dimensions with connectors	23cm(W) X 21cm(L) X 18cm(H)
Weight	15 Kg
Material of case	CAST ALUMINUM
Move guide for X and Y-axis	LM Guide
Air pressure	Min 2 Bar to Max 5 Bar
Motor	STEPPING MOTOR
Control Unit	All available controllers
Component	Dust Cover Type, 24 pins for connect with MCU, Mac valve, X & Y timing belts
