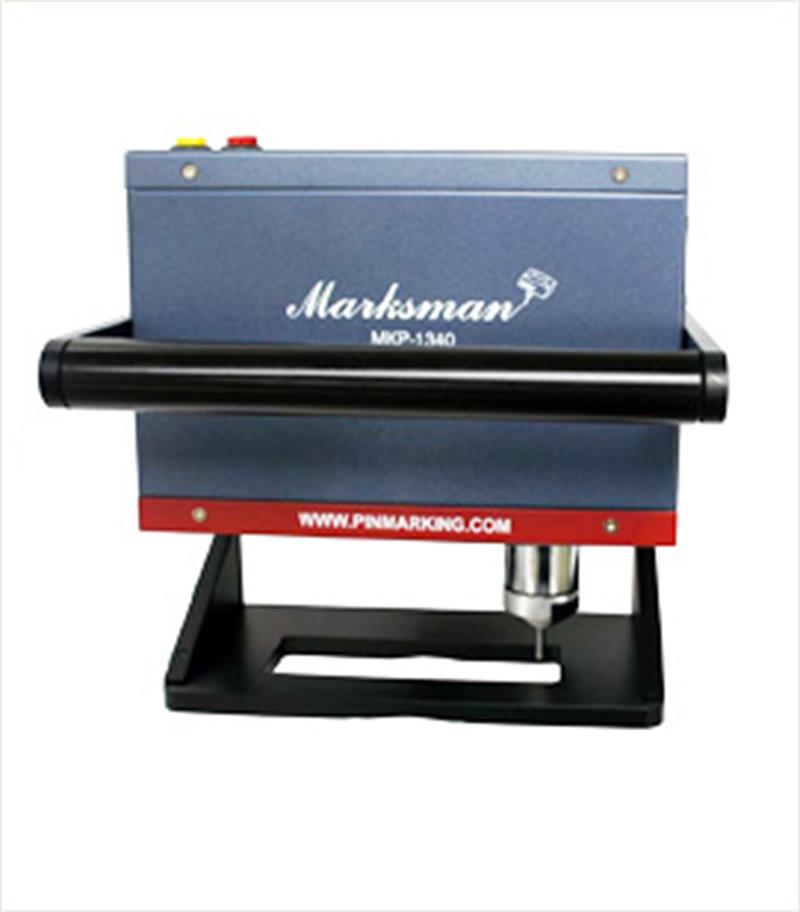

Battery operated hand-held (Portable) marking machine MKP-1340

Mã SP : SKU00046

The MKP-1340 is battery operated portable marking capability with Blue tooth connectivity.
MKP-1340 marking machine is ideal for large fabrications and bulky, heavy and stationary parts on pallets. It supports linear, angler and cylindrical surfaces and 2D Data Matrix marking.
You can even edit your information and send it wirelessly to the marking head in seconds via Bluetooth and verify your variable data and setting on the built-in LCD.
Any material can be marked from plastic and hardened steel upto HRC 62.
No electric and pneumatic cable need the marking process.
Possible to do 40minutes continuous marking without recharging by 2.0Ah battery standard.



Model

MKP-1340

Dimension

220 mm (W) X 122 mm (L) X 238 mm (H)

Marking area

120 mm (X) X 38 mm (Y)

Weight(Including battery

5.5kg (5.85kg)

Mobile application

Search for JS 2200 on app store and Play store

Available cha. height

1.0 Depending on the marking window

Font

Standard 1 & 2, DOT font(Size 5x7), USER font Available any window font with JS 2100 S/W

Marking Pin

Electromagnetic marking pin

Stroke of marking pin.

Upto Max. 5mm (Constant marking depth)

Available Cha.

Figure, Capital letters, Lower case. Special cha
