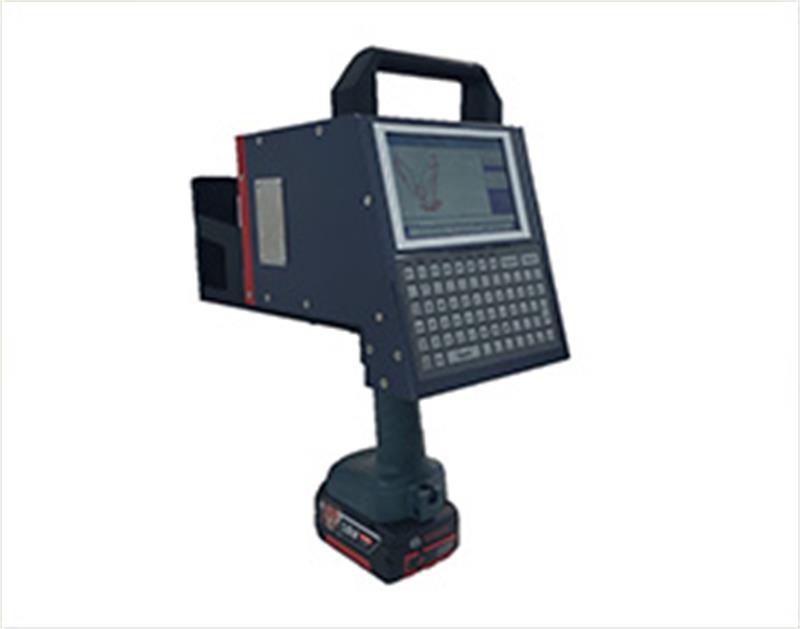

Battery operated hand-held (Portable) marking machine MKP-064

Mã SP : SKU00045

The MKP-064 is battery operated(Hand-held) portable marking system.
MKP-064 marking machine is ideal for large fabrications and bulky, heavy and stationary parts on pallets. It supports actual marking to linear, angular and cylindrical surfaces. (No seperate optional program)
You can even edit marking information with inbuilt keyboard and verify your variable data and setting to front built-in LCD.
Any material can be marked from plastic and hardened steel upto HRC 62.
No electric and pneumatic cable is needed whole marking process.
Possible to do 40mins continuous marking without recharging by 2.0Ah battery standard

Possible to create marking files on inbuilt keyboard and actual marking data appear to inbuilt screen. Can save and load marking data via USB. It is possible to visualize the created marking file by preview function on front screen before the actual marking process.

0903 446 042 Gọi điện xác nhận và giao hàng tận nơi

Model	MKP-064
Dimension	155 mm (W) X 317 mm (L) X 282 mm (H)
Marking area	58 mm (X) X 40 mm (Y)
Weight(Including battery)	2.9kg (3.2kg)
Available cha. height	- 40.0mm
Font	Standard 1 & 2, DOT font(Size 5x7)
Marking Pin	Electromagnetic marking pin
Stroke of marking pin.	Upto Max. 5mm (Constant marking depth)
Available Cha.	Figure, Capital letters, Lower case. Special cha.
