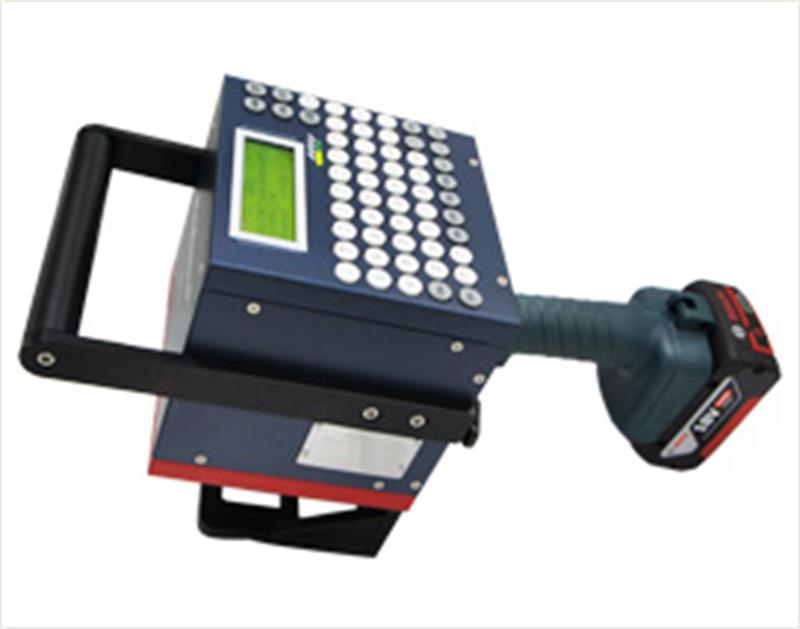

Battery operated hand-held (Portable) marking machine MKP-054K

Mã SP : SKU00047

The MKP-054 is battery operated portable marking capability with Blue tooth connectivity.
MKP-054 marking machine is ideal for large fabrications and bulky, heavy and stationary parts on pallets. It supports linear, angler and cylindrical surfaces and 2D Data Matrix marking.
You can even edit marking information with inbuilt keyboard or send it wirelessly to the marking head in seconds via Bluetooth and verify your variable data and setting on the built-in LCD.
Any material can be marked from plastic and hardened steel upto HRC 62.
No electric and pneumatic cable need the marking process.
Possible to do 40mins continuous marking without recharging by 2.0Ah battery standard.

0903 446 042 Gọi điện xác nhận và giao hàng tận nơi

Model	MKP-054K
Dimension	158 mm (W) X 150 mm (L) X 340 or 155 mm (H)
Marking area	60 mm (X) X 30 mm (Y)
Weight(Including battery & jig)	4.1kg (4.5kg)
Jig size	145 mm (W) X 115 mm (L) X 320
Available cha. height	1.0 - 30.0mm
Font	Standard 1 & 2, DOT font(Size 5x7), Available any window font with JS-2100 and JS-2200 S/W
Marking Pin	Electromagnetic marking pin
Stroke of marking pin.	Upto Max. 5mm (Constant marking depth)
Available Cha.	Figure, Capital letters, Lower case. Special cha.
