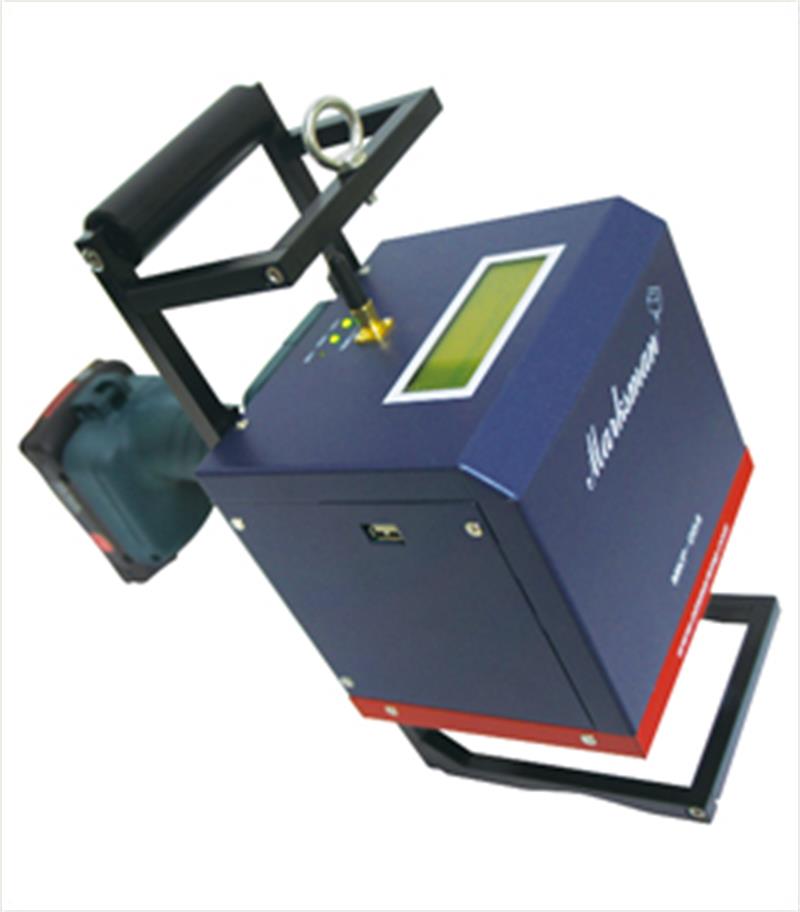

Battery operated hand-held (Portable) marking machine MKP-054

Mã SP : SKU00048

The MKP-054 is battery operated portable marking capability with Blue tooth connectivity. MKP-054 marking machine is ideal for large fabrications and heave parts on pallets. It supports linear, angler and cylindrical surfaces and 2D Data Matrix marking. You can even edit your information and send it wirelessly to the marking head in seconds via Bluetooth and vefity your variable data and setting on the built-in LCD.



Model

MKP-054

Dimension

152 mm (W) X 130 mm (L) X 330 or 140 mm (H)

Marking area

60 mm (X) X 30 mm (Y)

Weight(Including battery & jig)

3.2kg (3.9kg)

Jig size

145 mm (W) X 115 mm (L) X 320

Weight for jig

0.5kg

Moving guide for X and Y axis

Iron (Bearing guide)

Specification

Linear, Angular, 2D data matrix, Logo marking
